DrakeLoader

CS-1800 Collator

Our flagship machine – rugged, durable, fast, & sanitary to deliver you lower labor costs, higher through-put, easy wash down, and peace of mind on the factory floor.

Request a Consultation

The Definitive Food Loader

This machine put Drake on the map and became the industry standard in automatic food loading for decades. With new innovations like vision, powerful integrations, new cleaning guards, food safety & Sani-chain options available, this stainless steel staple is one you can rely on. It’s made with a unique, state-of-the-art handling method that minimizes recirculation of product by using our patented first-in, first-out system.

Request a Brochure

Applications

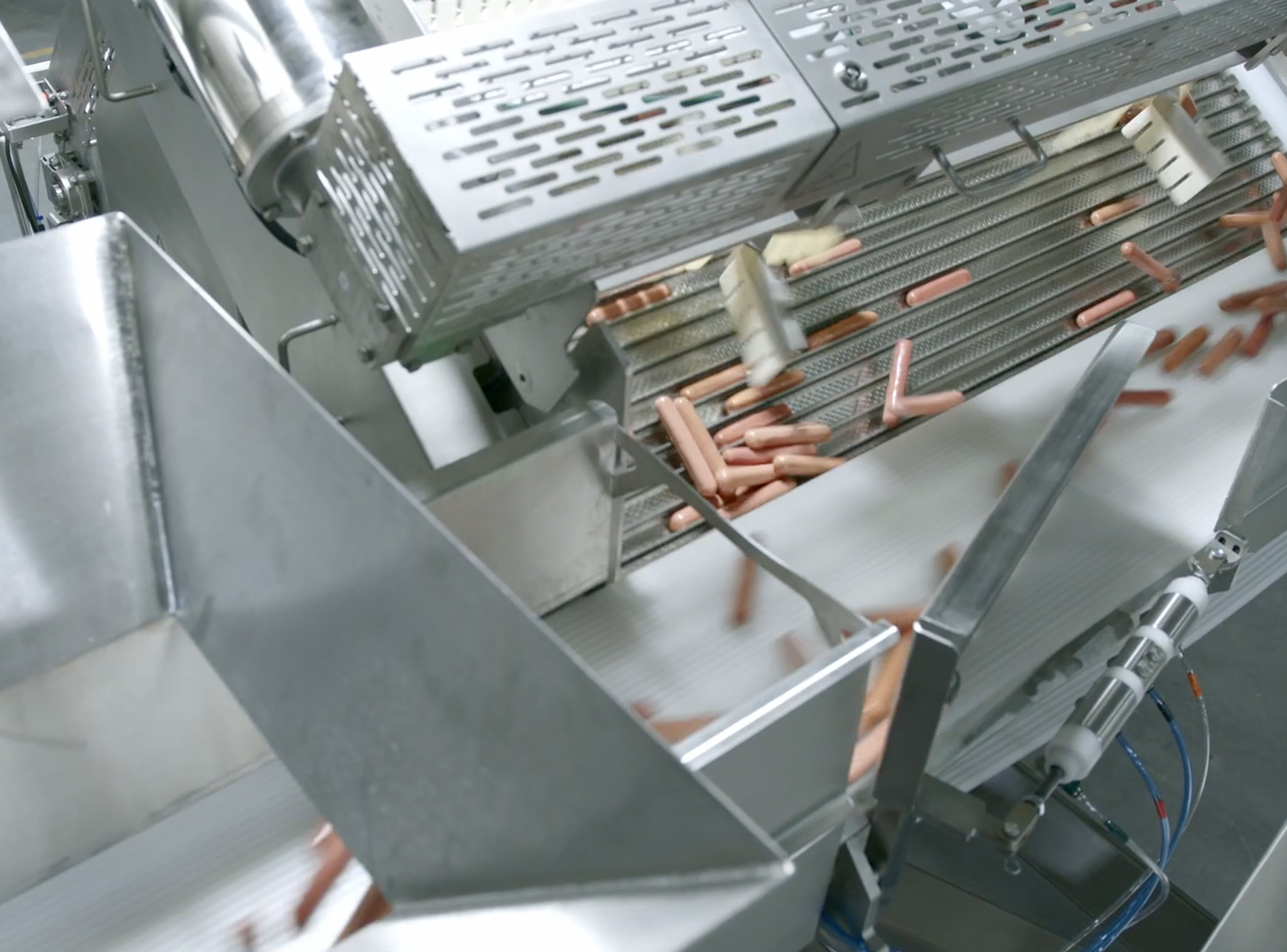

The DrakeLoader CS-1800 is a workhorse that moves cylindrical food products like frankfurters, sausages, snack sticks, pickles, cheese sticks, & more at 1,800+ pieces per minute. Our engineers work with your floor space, product specs, & packager to enable flexible or rigid film, can, tray, box, or jar loading. Versatile modular heads offer quick changeover time for different packaging applications. Made in the USA from 89.3% recycled steel, it’s a long-lasting model that can withstand wash down environments for decades to come.

Food Safety

The CS-1800 is able to load products that are cooked or chilled & can handle skinless or skin-on products. This reliable machine processes products from 12mm to 32mm in diameter & from 76mm (3 inches) to 300mm (12 inches) in length at speeds up to 1,800 pieces per minute.

Integrations

All Drake autoloaders feature easy-to-operate Rockwell touch screen controls, allowing for the quick addition of new recipes and rapid adjustments to various areas of the loader. Combined with Drake’s legendary customer service, parts turnaround, terms & conditions, and available upgrades & mods, you’re assured of an efficient, rugged loader that helps you automate your food production lines and give you a heavy return on investment and confidence in your ability to meet demand.

Features

Low profile: easier to operate, wash, and maintain
Sani-chain collector for easy daily cleaning, retrofit available
Up to 1,800 pieces per minute
98%+ product fill rate
Rockwell Automation touch screen controls for rapid adjustments
Loads product with or without casing
Pneumatic hinge gates (optional)
Rapid changeover modular head
Configuration: in-line or perpendicular to packager
Conforms to AMI sanitary equipment design principles

Specifications

Voltage: 08-240 V or 380-480 V 50 or 60 Hz, 3PH
Fuse: 30A
Noise Level: under 80.0 dB (A)
Optional Water: 8 GPM (30 LPM)
Air: 80 PSI (5.62 kgf/cm2)
Configuration: in-line or 90˚
Height: 76in (1.92m)
Length: 289in (7.34m)
Width: 108in (2.75m)

Engineered for Lasting Value

Custom made in the USA and built to last, our equipment boosts profits for years to come.
